A Bowl lifter and batch hopper are essential components in industrial or commercial food processing equipment, primarily used in the baking and food manufacturing industries.

Bowl Lifter:

  • A bowl lifter is a mechanical device designed to lift, tilt, and position large mixing bowls in industrial mixers or other processing machinery.
  • It assists in the handling of heavy mixing bowls, which can contain large volumes of ingredients used in the preparation of dough, batter, or other food products.
  • These lifters come in various designs and sizes to accommodate different mixer models and bowl capacities.

Batch Hopper:

  • A batch hopper is a container or vessel used for holding and dispensing bulk quantities of ingredients or materials in a controlled manner during the production process.
  • It is commonly used in food manufacturing to store and supply dry or liquid ingredients such as flour, sugar, grains, liquids, or powders required for mixing or blending.
  • Batch hoppers can be equipped with features like dispensing mechanisms, measuring systems, or agitation devices to ensure accurate and consistent ingredient flow.

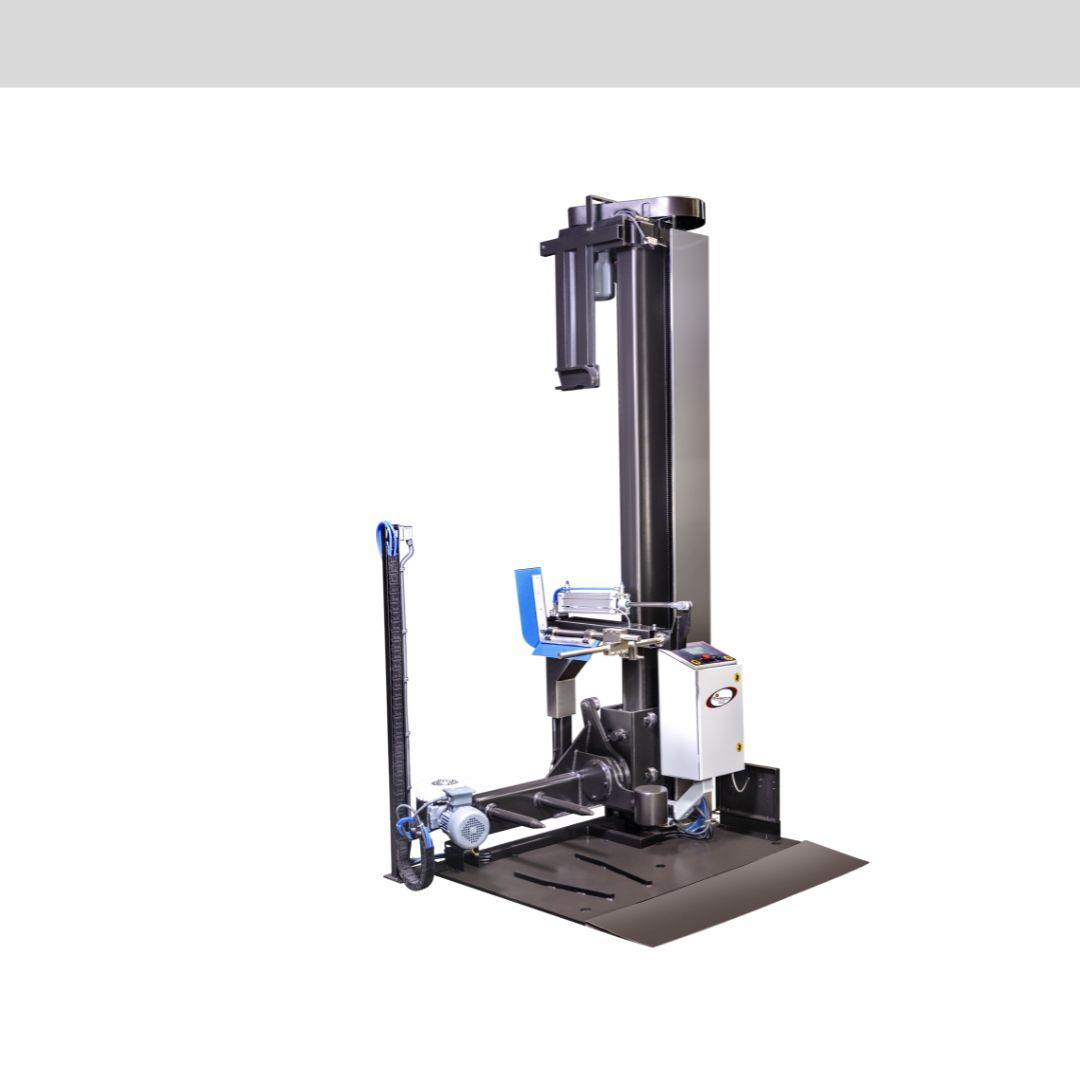

CS Bowl lifter & Batch hopper

The Bowl Lifter has a simple function of lifting and discharging bowls. You can customize the bowl lifter's height to lift and discharge bowls as per the customer's requirement.

In addition to the height adjustment, the bowl can also be tilted towards the left or right as per the client's requirement. The Hopper is made of stainless steel.

It is designed like an inverted pyramid with rounded edges to facilitate smooth dough flow into the Hopper.

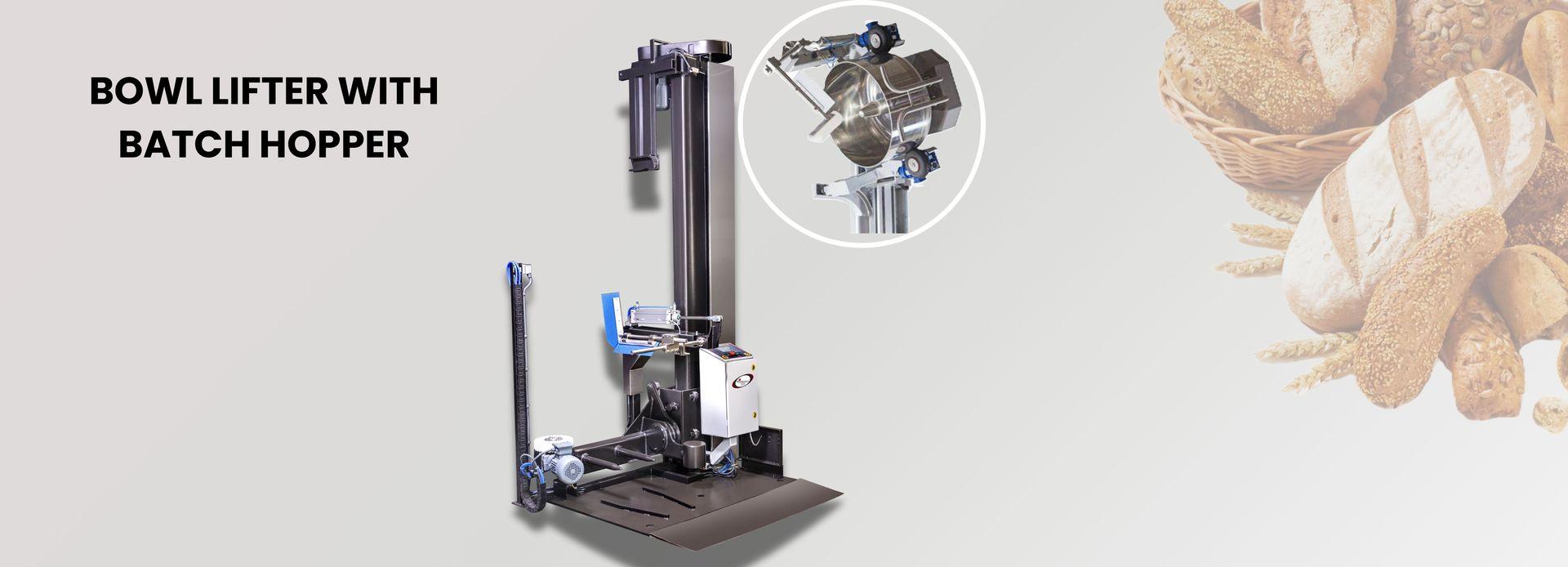

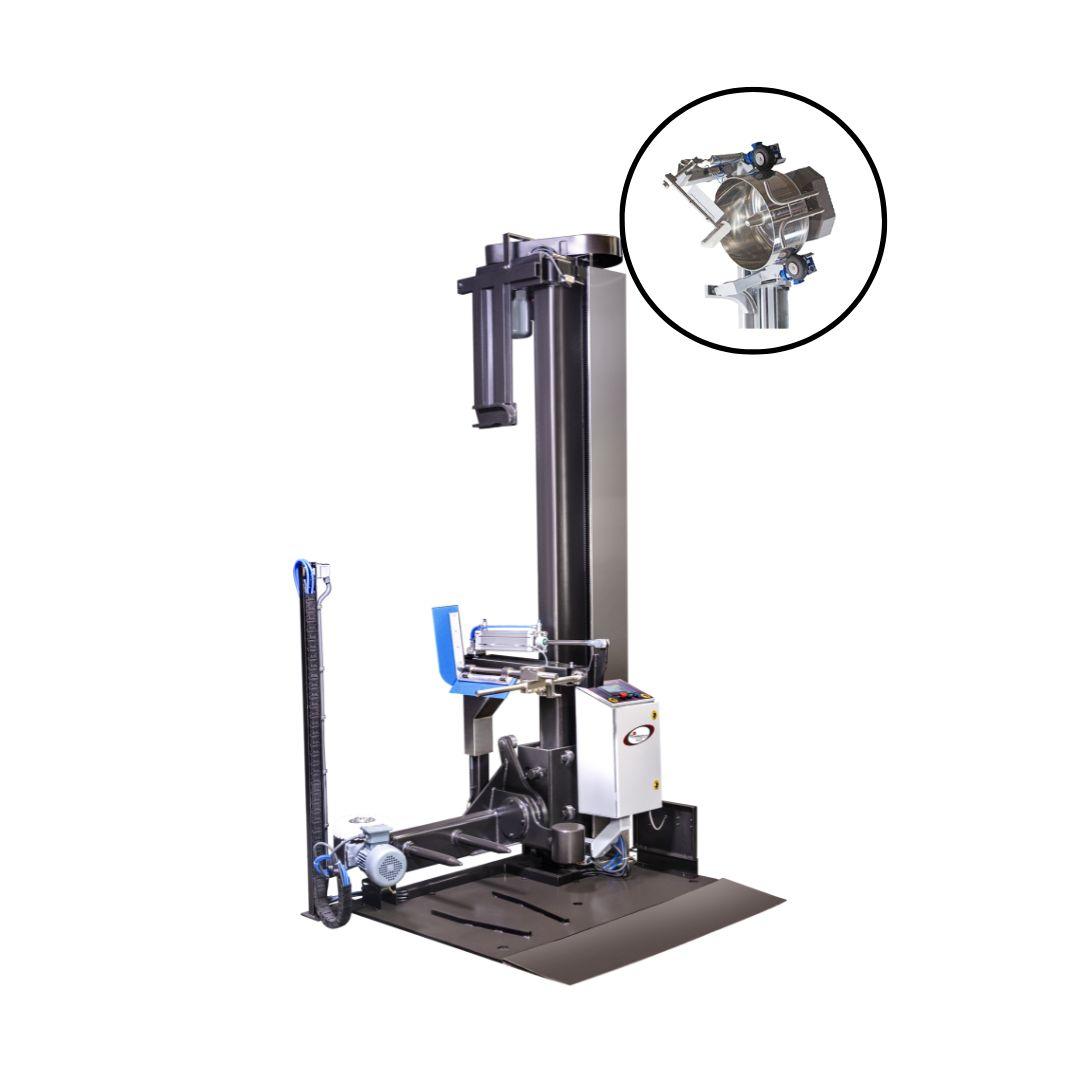

Bowl Lifter with Scraper

Bowl Lifter is used for lifting and discharging bowls. You can customize the height to lift and discharge bowls as per customer's requirement. It can also be tilted towards left or right as per client's requirement.

Hopper is made of stainless steel and is designed like an inverted pyramid with rounded edges to facilitate smooth dough flow into the Hopper.

It comes with a stainless steel scrapper which avoids wastage of dough. It scraps the dough from the sides of the bowl while it’s being emptied into the hopper.

Standard Features Include:

Easy lifting of big and heavy bowls.

Stainless steel body makes it durable and long-lasting.

The bowl lifter height can be customized

Pyramid-shaped hopper for smooth flow of dough

Bowl Lifter Specifications


Specifications

LT

LT-H

Load Capacity (Kgs)

700

700

Installed Power (KW / HP)

1.5/2

1.5/2

Voltage and Phase (Volts / Phase / Hertz)

415 / 3 / 50

415 / 3 / 50

Dimensions (L x W x H) in mm / inches

1600 x 1200 x 3200 / 63 x 48 x 126

1600 x 1200 x 3670 / 63 x 48 x 145

Weight (Kgs)

900

1210

Batch Hopper Specifications


The Hopper is made of stainless steel. It is pyramid in shape with rounded edges. This facilitates smooth dough flow into the hopper of the Dough Divider and enables easy cleaning as well.

Details

Specifications

Bowl Volume (I)

400

Maximum Dough Weight (Kgs)

260

Dimensions (L x W x H) in mm / inches

1300 x 1300 x 2622 / 52 x 52 x 104

Weight (Kgs)

280

We CS aerotherm best in manufacturing stainless steel industrial kitchen Equipment.
